OM 21

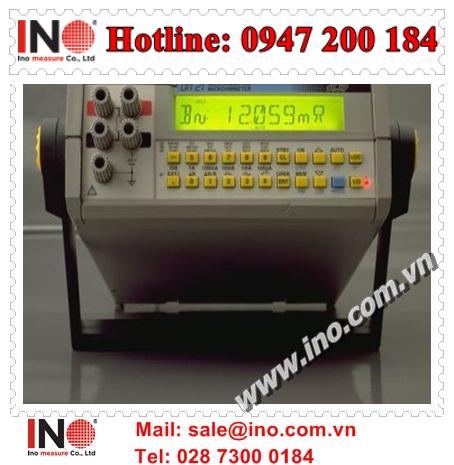

Programmable benchtop micro-ohmmeter – High accuracy: 0.03 %

OM 21 benchtop micro-ohmmeter is used for 4-wire measurement of very low resistance values up to 20 kΩ with an accuracy of 0.03% RDG and a 0.1 µΩ resolution. The reliability and accuracy of the measurements is improved by a low temperature coefficient of 10 ppm/°C, automatic removal of EMF parasites before each measurement, metal temperature compensation and compensation of ambient temperature.

Instrument:

OM 21-1                 Programmable benchtop micro-ohmmeter

With RS 232 interface

OM 21-2                 Programmable benchtop micro-ohmmeter

With RS 232 interface and battery + charger

OM 21-3                 Programmable benchtop micro-ohmmeter

With RS 232 interface and IEEE 488

OM 21-4                 Programmable benchtop micro-ohmmeter

With RS 232 interface, IEEE 488 and battery + charger

Clips and probes:

Please note that 2 clips are needed per OM 21.

AN5806-2               Gold plated Kelvin clips, set of 2

Opening diameter: 12 mm, cable length: 2 m

AN5806C               Kelvin clips, set of 2

Opening diameter: 12 mm, cable length: 3 m

AMT003                 Test probe, per unit

Cable length: 5 m

AMT004                 Kelvin clip, per unit

Opening diameter: 25 mm, cable length: 3 m

Other accessories:

LOG OM                Configuration & exploitation software for OM 21

Including RS 232 cable

AN6901                 Soft case for benchtop instruments

AMT002                 External power supply 3 V – 10 A

AN5883                 Bracket mounting for panel installation (T2 box type)

AN5884                 Rack mounting kit for rack installation (T2 box type)

AN5875                 RS232 9p F cable

AN5836                 IEEE 488 cable

Length: 2 m

AN8009                 Set of 10 fuses – 16 A



Certification:

QMA11EN              COFRAC certificate of calibration

► Các câu hỏi, thắc mắc, thông tin liên quan đến sản phẩm từ khâu mua sắm, lựa chọn, sử dụng, cài đặt hay thay thế, vui lòng liên hệ với INO team để được hỗ trợ và tư vấn kịp thời.
